The previous article was shared with youWMS product architecture diagram、Appointment warehousing management、Receipt management sectionToday, we will continue to share with you the prototype design and logical practical part of the WMS series:Quality inspection management。
scenario
After receiving the goods from the warehouse, the quality inspection will be carried out before entering the warehouse, and only the products of the quality inspection contract will be allowed to be put on the shelves and put into storage, and those that fail the quality inspection will be rejected.
Quality inspection management

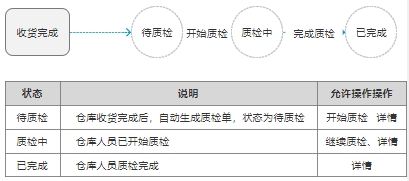

Status description
Page attribute details
Description of key information in the query area
Quality inspection bill number: accurate query.
Receipt number: Accurate query.
Status: Single, see Status Description for optional values.
Created in: Accurate to days, including dates on both sides.
Export; Export data that meets the query conditions, and synchronize the data displayed in the exported column list.
Key information description in the list area
Sort: Reverse order by creation time.
Quality inspection order number: generation rules: ZJ+04 + year, month, day + three-digit serial number, such as ZJ0420250521001.
Total: The total number of products that require quality inspection.
Number of qualifications: the number of products that have passed the quality inspection.
Inappropriate number: the number of products that fail the quality inspection, if it is greater than 0, it is displayed in red font.
operate

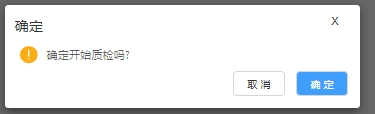

Start quality inspection: After clicking, a second reminder box pops up “Are you sure to start quality inspection?” After confirmation, the Start Quality Inspection page pops up, and this document is updated to be in quality inspection.
Continue the quality inspection: Click to start the quality inspection page.
Details: Click to pop up the details page.
Start the QA page

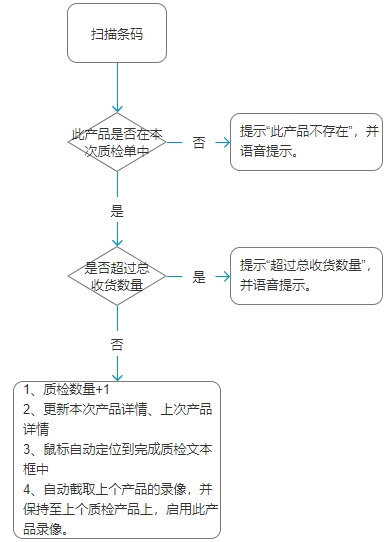

Operation process
Page key information description
Start quality inspection
Additional information notes
1. Product barcode: When the page loads, the mouse defaults to the current text box, which is convenient for quality inspectors to directly scan the product to start quality inspection.
2. Quantity display format: quality inspected quantity/total received quantity.
3. The product details are displayed in the following format:
Product name, barcode, size, color, abnormal part [click the modify icon when there is an abnormality, the non-conformity reason page will pop up], the reason for the non-conformity [click the modify icon when there is an abnormality, the non-conformity reason page will pop up], the quality inspection progress of this SKU [the number of quality inspections / total number of goods received; Click on the number to pop up the quality inspection record page]
4. The last product details, the display format is as follows:
Product name, barcode, size, color, abnormal part, reason for non-conformity, re-quality inspection [Click to re-inspect this product]

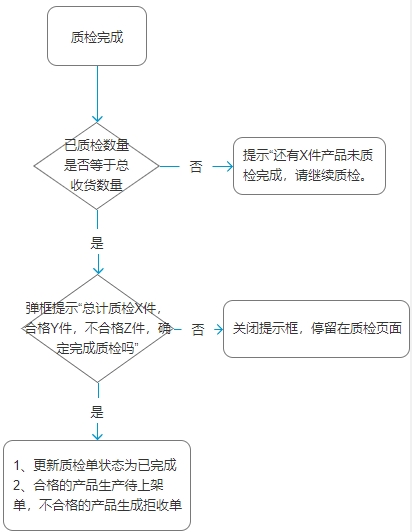

Quality inspection completion logic

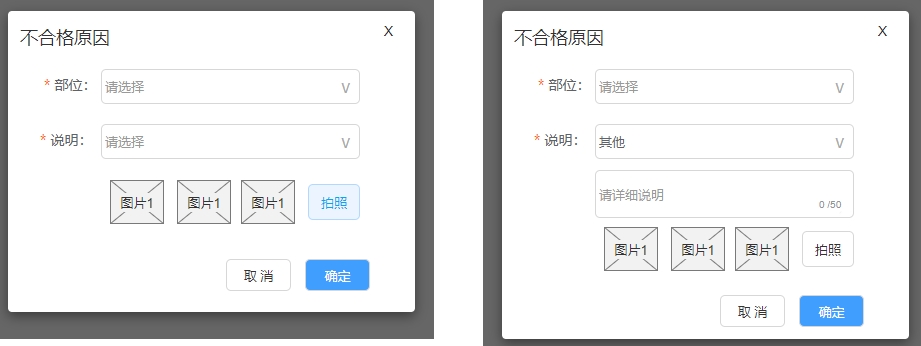

Nonconforming prototype page
Part: Data dictionary, support multiple selection;
Description: Data dictionary, support multiple selection; When selecting Other, an input box is displayed below the selection box, up to 50 words.
After the photo button on the document, the photo function in the real-time recording function will be automatically retrieved, and the currently taken photos will be automatically uploaded.

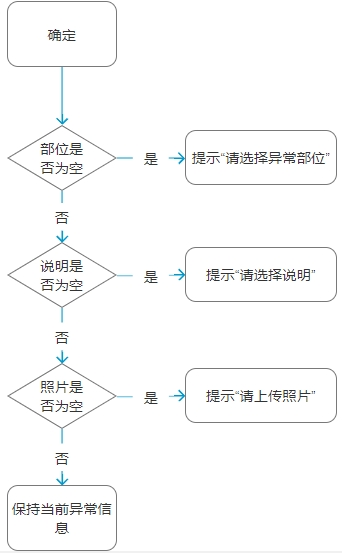

When you click OK, the judgment is as follows:
Quality inspection records
If you click the value of the total number of quality inspections, the number of qualifications, and the number of failures to display the quality inspection records, the quality inspection record details page will appear.

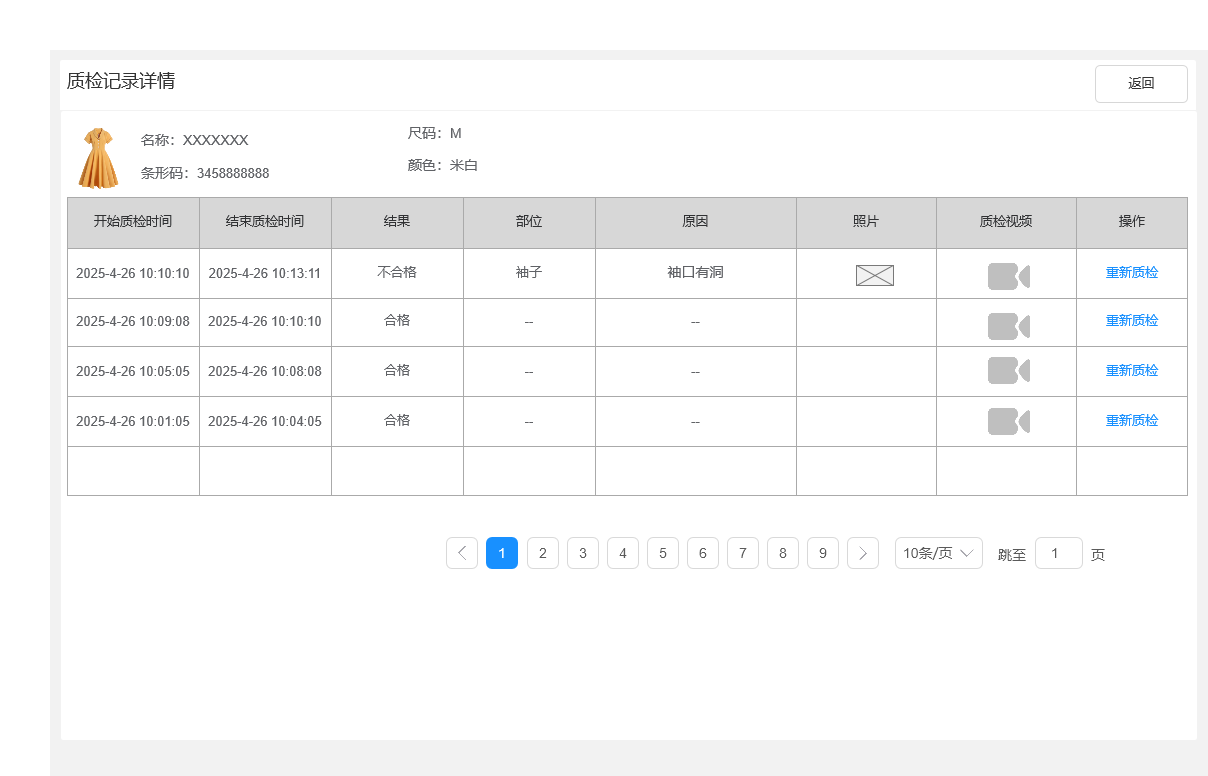

Details of quality inspection records
Sorting: Reverse order according to the start time of quality inspection.
Photo: Automatically enlarge after tapping.
Quality inspection video: Automatically play after clicking.
Re-quality inspection: Click to check whether the current quality inspection form status is “Quality inspection”.
is the quality inspection, prompting “confirm the re-quality inspection”, and automatically bring the current product out of the quality inspection interface after confirmation
Not in the quality inspection, it prompts “The current quality inspection form is completed, and re-quality inspection is not allowed”

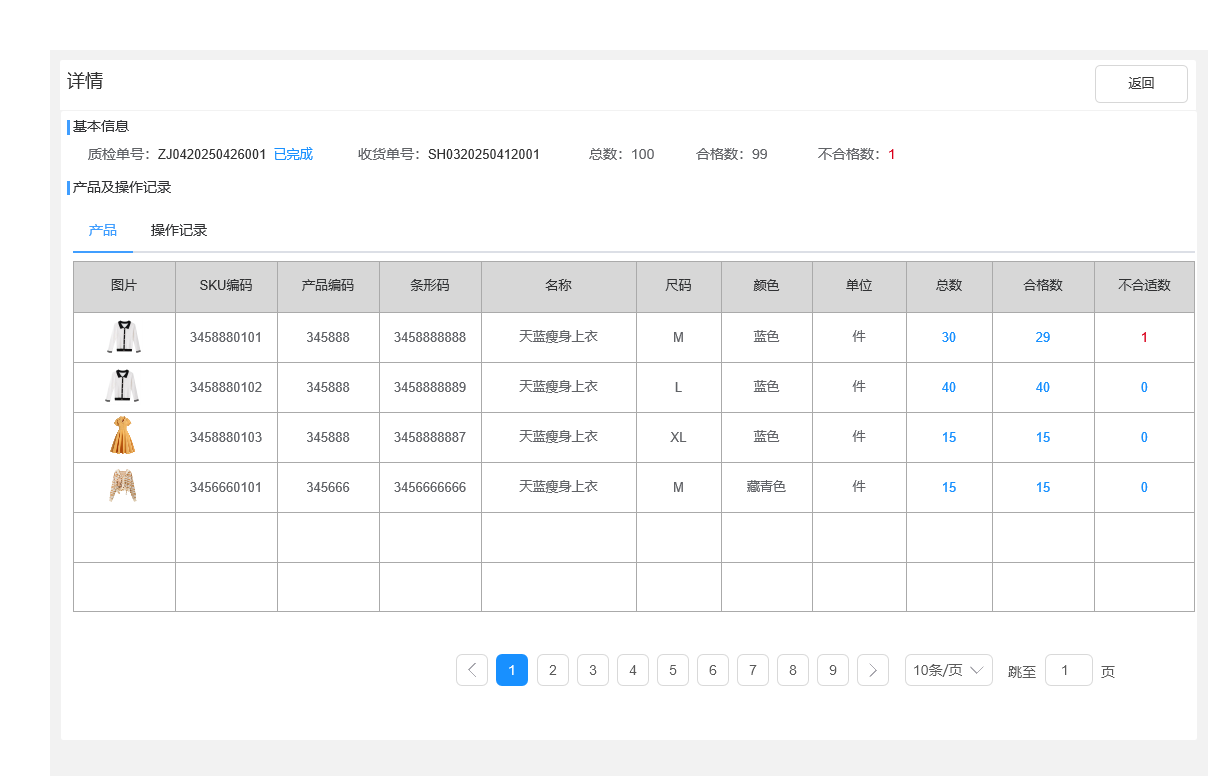

detail
Support viewing product details and operation records.
In the next article, we will continue to share with you the prototype diagram and business logic related to shelf management.
For a panoramic view of the WMS system, go to:WMS product architecture diagram
To learn more about appointment management in WMS, please go to: Appointment warehousing management
To learn more about receiving management in WMS, go to:Receipt management section
