Panoramic analysis of the function of the online car-hailing map: intelligent practice from the driver side, the passenger side to the service side

In the ride-hailing industry, the map function is not only a navigation tool for drivers and passengers, but also the core of the entire service experience. From accurate positioning and intelligent decision-making on the driver side, to convenient ride-hailing and itinerary sharing on the passenger side, to capacity scheduling and cost calculation on the service side, map technology runs through every link of online car-hailing. This article will analyze the intelligent practice of ride-hailing map function in a panoramic view, and delve into how map technology on the driver, passenger, and server sides can reshape the ride-hailing industry, improve efficiency, optimize experience, and promote technological progress across the industry.

How to achieve a 30% efficiency improvement and zero complaints and negative reviews through map technology?

Chapter 1 Beginning: How does map technology reshape the ride-hailing industry?

1.1 The evolutionary history from “blind opening” to “AI navigation”

Case: The average driver took 8 minutes to pick up and drop off in 2016 vs 3 minutes in 2024 (AutoNavi data)

User pain points reversed:

“Passengers complain about ‘driver detours’? The driver is aggrieved by ‘inaccurate navigation’? ——The essence is that map data and business logic are not deeply integrated”

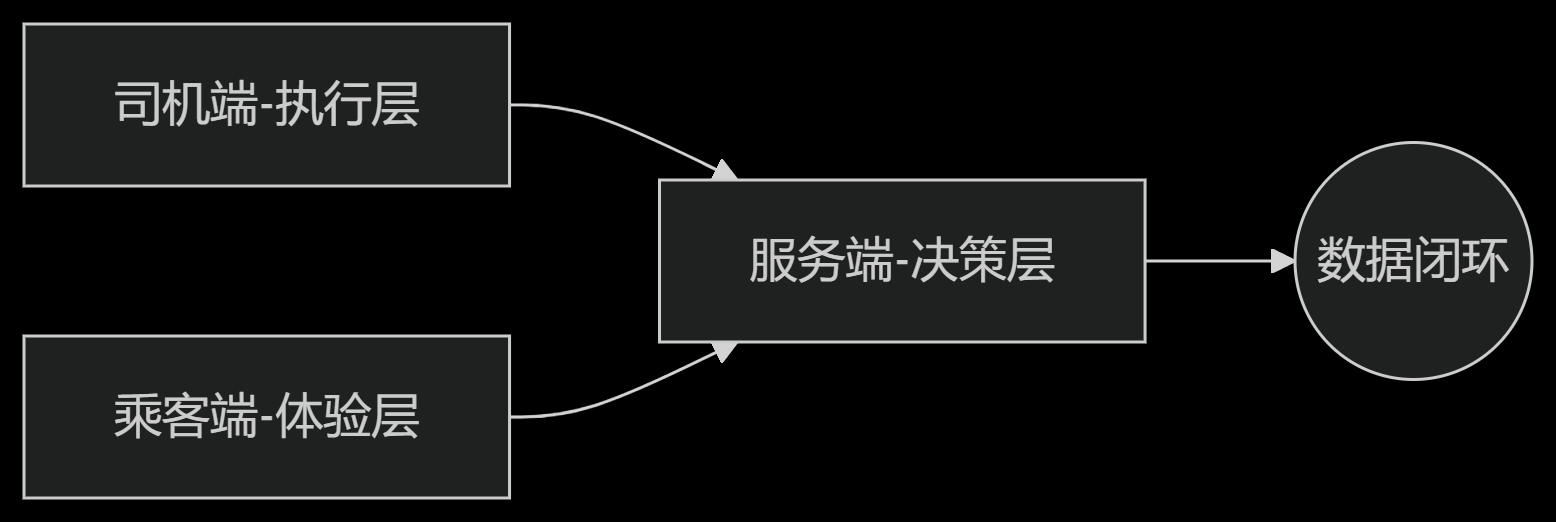

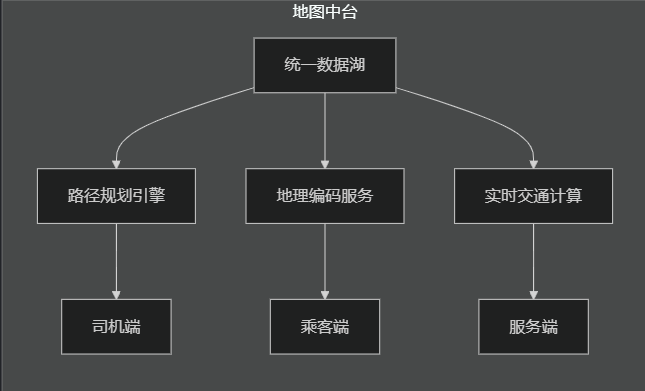

1.2 Three-end collaborative value chain model

Chapter 2 In-depth Dismantling of Driver-Side Functions: From Basic Positioning to Intelligent Decision-Making

2.1 Map display: “battlefield sand table” in the eyes of drivers

Functional definition

The driver-side map needs to meet the two major needs of navigation accuracy and operational information transmission at the same time, including:

• Real-time traffic rendering (congestion, accidents, control)
• Capacity heat map (order density distribution)
• Synchronized tracking of driver/passenger location

Technical implementation

B-end product manager’s ability model and learning improvement
The first challenge faced by B-end product managers is how to correctly analyze and diagnose business problems. This is also the most difficult part, product design knowledge is basically not helpful for this part of the work, if you want to do a good job in business analysis and diagnosis, you must have a solid …

View details >

Performance optimization keys:

• Vector slice: Dynamically load road details based on zoom level (e.g. zoom≥ show lanes at 12)
• Offline cache: Preloading of the resident city road network (save 30% of traffic, refer to the driver’s data of a platform)

Scenario case

Problem: The map around Shenzhen North Railway Station is seriously stuck during peak hours

Solution:

• WebGL rendering was used instead of Canvas, and the FPS was increased from 15 to 45
• Dynamic adjustment of heat map data aggregation particle size (50 meters grid when there are few people, 20 meters grid when dense)

Optimize the direction

• AR navigation enhancement: Recognize real-life road signs through the mobile phone camera (such as Baidu Maps AR driving mode)
• Voice interaction: “Avoid current congestion” voice command instantly recalculates the path

2.2 High-precision positioning: the line of life and death with centimeter-level accuracy

Functional definition

Achieve positioning accuracy of ≤ 1 meter in complex urban environments, ensure:

• No drift in viaducts/tunnels
• The error of the passenger boarding point is < 3 meters

Technical principle

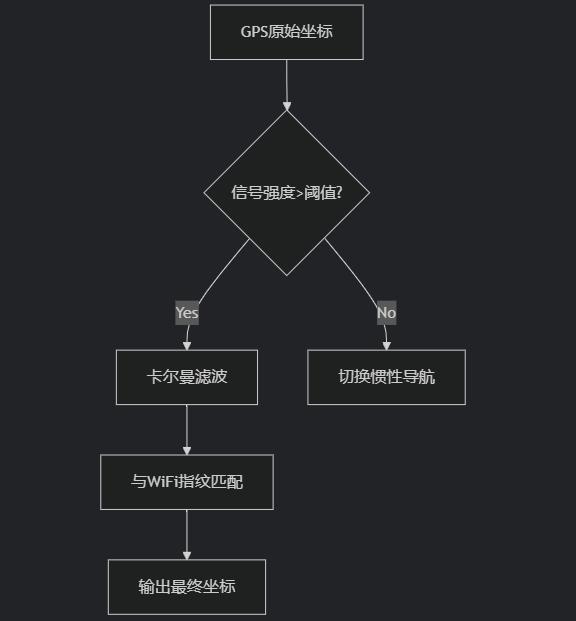

Multi-source fusion algorithm process:

Business value

• Pick-up efficiency: Tests in Chaoyang District, Beijing, show that after the accuracy is improved from 5 meters to 1 meter, the driver’s arrival time is shortened by 22%
• Complaints decreased: Shanghai Pudong Airport “couldn’t find a car” complaints fell by 67% (data source: T3 Travel 2023 Annual Report)

2.3 Path planning: the balance of interests behind the algorithm

Functional definition

Dynamically calculate the optimal route based on real-time road conditions, driver preferences, and platform rules, which need to support:

• Multipath alternative (shortest time/least toll/least traffic lights)
• Dynamic traffic avoidance (refresh the route every 30 seconds)

Core algorithms

Basic model: Dijkstra algorithm (shortest path)

Optimized variants:

• A* Algorithm: Introduce time-consuming heuristics for estimation (default to AutoNavi API)
• Ant colony algorithm: simulate vehicle traffic adaptation (the measured efficiency of Hangzhou smart transportation project is increased by 18%)

Conflict resolution

Contradiction between drivers and platforms: drivers hope for “high speed throughout the process” → platforms tend to “fuel-saving routes”

Solution: Provide a “profit-maximizing” route (balancing high-speed tolls and fuel consumption)

Conflict between passengers and drivers: passengers demand “the fastest” → drivers want to “stop by and take orders”

Solution: Display the “platform recommended route” and “driver preferred route” options

2.4 Heat Map and Capacity Scheduling: Data-driven order taking strategy

Functional definition

Visualized by heat map:

• Historical order density (red = high-frequency area)
• Real-time number of competing drivers (blue circle coverage)

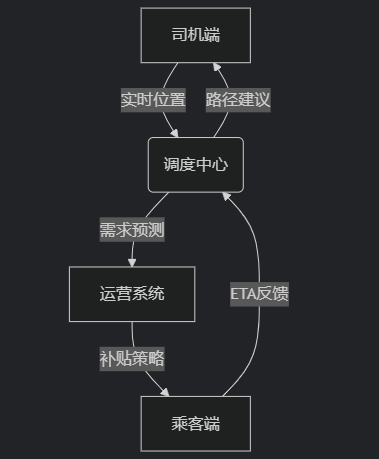

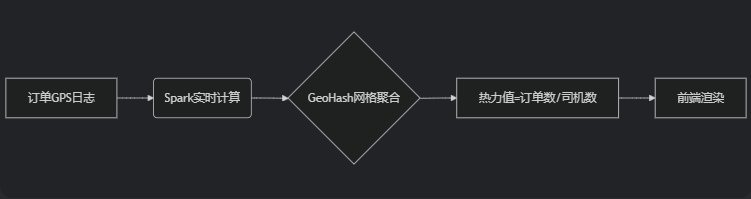

Data architecture

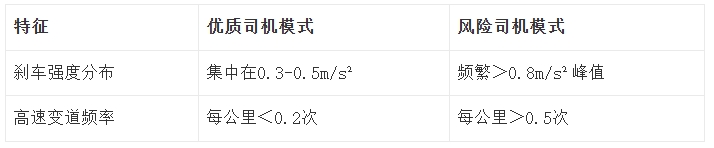

Driver behavior research

• Novice drivers: Over-reliance on heat maps, resulting in clusters in business districts (income declines)
• Veteran drivers: Combine heat maps with time patterns (such as implicit demand during the morning rush hour of schools)

Optimization Strategy:

• Demand forecasting: LSTM model predicts thermal changes in the next 15 minutes (81% accuracy of testing on a platform)
• Anti-involution mechanism: When the area driver > 5 people, the heat map color is automatically downgraded

2.5 Driving behavior analysis: full-dimensional monitoring from safety to efficiency

Functional definition

Identification by map data:

• Sudden acceleration/braking (acceleration sensor + GPS speed change)
• Non-compliant parking (electronic fence comparison)

Model design

Safety scoring formula:

Safety Score = 100 – (Number of hard braking×2 + Number of hard accelerations×1 + Overdrive ×0.5)

Application Scenarios:

• Insurance cooperation: Drivers with a score of > 90 points enjoy premium discounts (such as a cooperation case between a platform and Ping An)
• Dispatch tilt: High-rated drivers give priority to long-distance high-quality orders

Data disputes

Drivers protested: “The platform algorithm judges avoiding pedestrians as emergency braking”

Improvement plan:

• Add gyroscope data to differentiate brake types
• Drivers are allowed to submit video appeals

The driver-side map has evolved from a static tool to a dynamic decision-making center, and the future competition focus is:

1. Personalized Recommendations: Tailor navigation strategies based on driver historical behavior
2. Vehicle-road collaboration: Access to V2X data such as traffic light countdowns
3. Energy consumption optimization: Exclusive route planning for electric vehicles (avoiding blind spots in charging on steep slopes)

Chapter 3 In-depth dismantling of the passenger function: the map technology war behind the experience

3.1 Functional maps from the perspective of the user journey

3.1.1 Ride-hailing stage: from “fuzzy description” to “accurate spatio-temporal matching”

Core features:

1) Intelligent pick-up point recommendation

Technical principle:

Step 1: Eliminate non-parking areas (electronic fence filtering)

Step 2: Calculate Walking Accessibility (Amap Walking Path API)

Step 3: Combine the historical heat weighting of car spots

Experience Design:

• 3D landmark guidance: Beijing West Railway Station recommends “drop-off area on the second floor of North Square” instead of latitude and longitude coordinates
• AR real-life annotation: superimposed arrow guidance through the mobile phone camera (such as taxi AR car search on a certain platform)

2) Destination forecasting

Data Sources:

• Historical orders (5 ≤ 80% of users’ favorite locations)
• Mobile calendar/taxi time (e.g. 9 a.m. → 72% probability of business address)

Privacy protection: “Huawei Petal’s device-side AI model predicts data without leaving the device”

Business value

• Conversion rate improvement: A platform has measured that intelligent recommendation shortens the time required to place an order by 40%
• Complaints decreased: Shanghai Hongqiao Airport “couldn’t find the pick-up point” complaints fell by 58%

3.1.2 Waiting for the bus: Eliminate “black ten minutes” anxiety

Core features:

1) Driver and passenger display (dual-screen synchronization)

Technical difficulties:

• Driver location update frequency (30 seconds for normal road section vs 5 seconds for airport highway)
• Path prediction correction (a platform patent: LSTM prediction algorithm based on the driver’s historical trajectory)

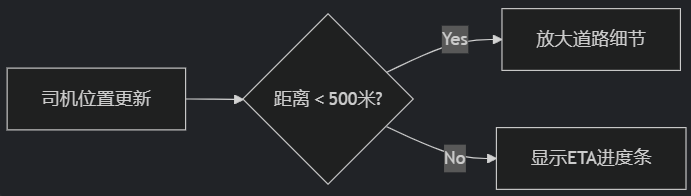

Motion design:

2) Real-time traffic visualization

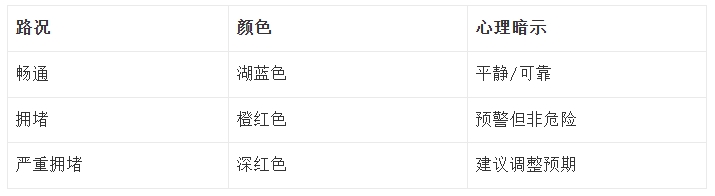

Color psychology applications:

Optimize the case

Problem: The evening peak vehicle icons of Shenzhen Science and Technology Park overlap seriously

Solution:

• Dynamic aggregation algorithm: When the zoom level < 15, the same road vehicles are merged into an aggregation icon with a number
• 3D hierarchical display: color separation display between elevated and surface roads

3.2 Technical penetration: A unique map challenge on the passenger side

3.2.1 Cost Estimate: The Beauty of Mathematics and the Battle of Trust

Algorithmic models

Estimated cost = base price + mileage price× planned distance / congestion coefficient + duration price ×ETA1.3

• Dynamic Variable Libraries:
• Extreme weather markup (triggered by the Bureau of Meteorology)
• Late night service charge (time geofencing)

Trust building mechanism

• Price sand table: the composition of the display cost
• Deviation compensation: Coupons will be automatically issued when the actual cost > estimated at 110%

3.2.2 Itinerary sharing: balancing security and privacy

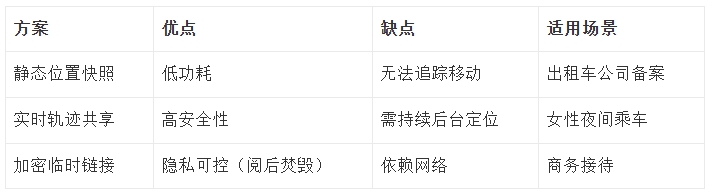

Comparison of technical solutions

The competition of passenger maps has shifted from basic function improvement to emotional design and trust economy construction:

1. Emotional Comfort: Reduce anxiety through ETA probabilistic presentations (e.g., “90% probability of arrival within 8 minutes”).
2. Transparency Revolution: Decrypting Black Box Algorithms (e.g., “Why did you recommend this route?”)
3. Scene integration: Deep integration with calendar/social apps (such as Tencent Maps one-click taxi to the meeting location)

Chapter 4 In-depth Dismantling of Server Functions: The “Invisible Brain” of the Online Ride-hailing System

4.1 Capacity scheduling center: from latitude and longitude to global optimization

4.1.1 Vehicle trajectory management: real-time processing of hundreds of millions of data

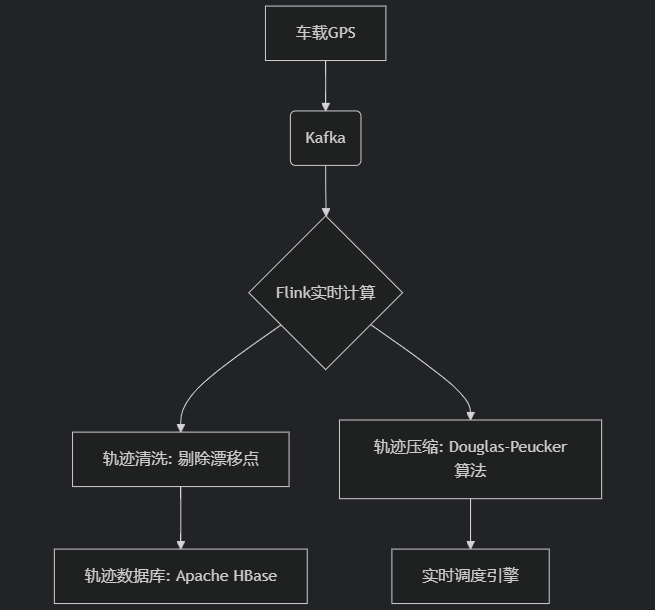

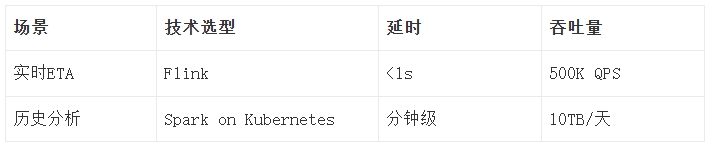

Technical architecture

Key Challenges and Solutions:

1) Data flood response:

Spring Festival travel case of a platform: Using GeoHash sharded storage, Beijing is divided into a 1km² grid, and the peak processing capacity of QPS reaches 2 million/s

2) Drift point filtering:

Speed Sudden Detection (over 120km/h for < 3 seconds)

Business value

• Dispatch efficiency: Deploy vehicles 5 minutes in advance through trajectory prediction, and shorten the pick-up time at Shanghai Hongqiao Airport to 3.2 minutes (industry average 8 minutes)
• Compliance supervision: Automatically identify abnormal stays (electronic fence in sensitive areas + stay time > trigger alarm within 10 minutes)

4.1.2 Dynamic scheduling of transportation capacity: practical application of reinforcement learning

Algorithmic models

Dispatch revenue = ∑ driver (order revenue i × order probability i ) − α× empty driving distance i

Input Characteristics:

• Driver location, battery level, historical order preference
• Regional demand forecasting (LSTM model output)

Training method:

• Offline training: Deep Q-learning based on historical orders
• Online learning: A/B testing triages 10% of orders optimized in real time

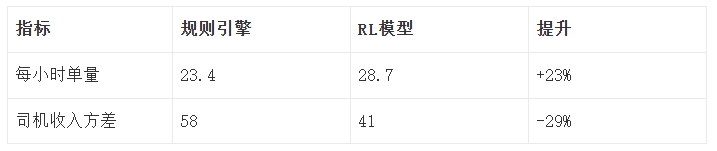

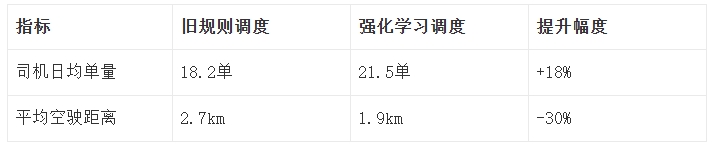

Upgrade effect of a platform in 2024:

4.2 Core computing services: industrial output of geographic intelligence

4.2.1 Driver-Passenger Matching Calculation: The Art of Multi-Objective Optimization

Matching rules engine

1) Input parameters:

• order: The passenger’s order information
• Candidates: List of candidate drivers

2) Matching process:

3) Filter the candidate drivers first:

Only drivers retained in the service area (isInServiceArea method)

4) Then sort the qualified drivers:

• Driver priorities are compared using a weighted scoring algorithm
• The scoring consists of three parts:
• Estimated Time of Arrival (ETA) score (60% weight)
• Driver income score (weighted 30%)
• Safety score (weighted 10%)

5) Finally choose the driver with the highest rating (findFirst):

Returns the optimal driver, and returns null if there are no qualified drivers

Peculiarity:

• Functional programming using Java 8’s Stream API
• Adopt multi-dimensional weighted scoring model (time efficiency> driver revenue> safety)
• Geofencing as a hard condition (must be met first)

Dynamic Weighting Strategy:

• Peak Hours: ETA weight increased from 60% to 80%
• Rain and snow weather: Safety weight increased from 10% to 25%

Reverse Geocoding

Accurate address resolution:

When the driver/passenger’s GPS coordinates (e.g. 116.4732, 39.9935) are transmitted to the API, the system can use this as an example

1. Display a humanized address (e.g. “No. 5, Zhongguancun South Street, Haidian District, Beijing”)
2. Identify regional characteristics (e.g., proximity to Beijing Institute of Technology)
3. For geofencing verification (e.g. to determine if it is in a service area)

Application Scenarios:

• Airport orders are automatically classified as “Terminal 3, T3” instead of latitude and longitude
• Government Supervision Report Generation (Heat Map of Order Distribution by District)

4.2.2 Cost calculation engine: from map data to fair pricing

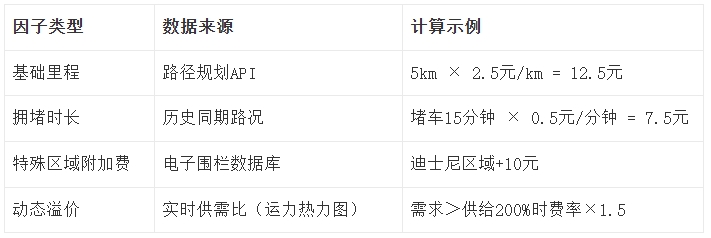

Dynamic pricing factor library

Anti-cheat design:

Path similarity detection:

• Detour: If the driver’s actual path suddenly deviates from the planned path by 500 meters somewhere (such as deliberately detouring the business district), Hausdorff will be more than 300 meters → trigger an alarm.
• Normal: A small detour (300 meters off the <) due to traffic control will not be misjudged.

4.3 Higher-level capabilities: from tools to strategic assets

4.3.1 Custom Maps: Branding and Scene Customization

Layer Customization:

• Catering Orders: Highlight the restaurant POI icon
• Medical orders: Mark the green channel of tertiary hospitals
• Building Roads: Map skin customizations

4.3.2 Trajectory big data mining

Business Insights Applications:

1) Urban hot spots:

• Identification of emerging business districts (order growth rate >20% for 3 consecutive months)
• After the opening of Zhengzhou’s “Only Henan” Drama Fantasy City, orders around it surged by 300%

2) Road network optimization suggestions:

• According to the trajectory data of the Huilongguan area in Beijing, adding a branch road can reduce detours by 15%

Server-side map technology has transcended the basic support role and has become the core variable of platform competitiveness:

1. Efficiency leverage: 1% ETA optimization can lead to tens of millions of driver cost savings
2. Compliance moat: Geofencing helps a platform reduce airport violation tickets by 90%
3. Data assetization: A car company purchased an annual travel heat map for 4S store location for 800 million yuan

Chapter 5 Capacity Scheduling and Trajectory Big Data: The Algorithm Revolution of Global Optimization

5.1 Capacity scheduling algorithm: from “local optimization” to “global game”

5.1.1 Technical limitations of the classical scheduling model

Traditional solution: The core idea of the greedy algorithm is to simply and efficiently assign orders to the driver closest to the current passenger.

Flaw:

• Resulting in a “clustering effect”: 10 drivers grabbed 1 order during the evening rush hour of Beijing International Trade Center, but there were empty cars 3 kilometers away
• Ignore the road network topology: the straight-line distance is close≠ the actual ETA is short (e.g., cross-river orders need to bypass the bridge)

Data confirmation:

According to data from a platform in 2018, under the pure distance priority strategy, the driver’s empty driving rate was as high as 42%

5.1.2 Evolution of global optimal algorithms

Hybrid integer programming (MIP) model

max∑i∈D∑ j∈O xij ⋅(Revenueij −α⋅Deadheadij)

Constraints:

• Only one driver can be assigned per order: $\sum_{i} x_{ij} \leq 1 \quad \forall j$
• The driver can only take one order at a time: $\sum_{j} x_{ij} \leq 1 \quad \forall i$

Combat improvements:

• Time-sharing relaxation: Relaxation of $\alpha$ weights during peak hours (allowing longer empty driving)
• Pre-allocation window: Orders for the next 5 minutes are also included in the calculation (Lyft patent US20210166123)

Breakthrough in reinforcement learning (RL).

State space design:

1) Driver Distribution Heat (driver_distribution)

Data format: GeoHash_grid_counts

Use GeoHash to divide cities into grids and count the number of real-time drivers within each grid.

Example value: {“wx4er”: 5, “wx4g2”: 0} means that the mesh “wx4er” has 5 drivers, while “wx4g2” has no drivers.

Function:

Identify areas of overcapacity/shortage

Avoid local drivers gathering (e.g., dispatch drivers to detect the “wx4g2” grid)

2) Demand forecasting (demand_forecast)

Data format: LSTM_15min_predictions

Based on the LSTM time series model, the order volume of each region is predicted in the next 15 minutes.

Example value: {“wx4er”: 8, “wx4g2”: 3} means that the grid “wx4er” is expected to generate 8 orders.

Function:

Predict the gap between supply and demand (e.g., “wx4er” will have 8 orders but only 5 drivers → need to be dispatched in advance)

Combined with historical laws (such as morning and evening peaks, weather influences)

3) Real-time traffic conditions (traffic_conditions)

Data format: realtime_congestion_map

Road condition grading data (e.g., 0-1 indicates smooth to congested).

Example value: {“wx4er→wx4g2”: 0.7} indicates that the path congestion from “wx4er” to “wx4g2” is 70%.

Function:

Corrected ETA (estimated time of arrival) calculation

Avoid dispatching orders to congested routes

Reward function:

R=β1 ⋅ Order Completion − β2 ⋅ Average Empty Driving Distance + β3 ⋅ Driver Satisfaction R = β1 ⋅ Order Completion − β2 ⋅ Average Empty Driving Distance + β3 ⋅ Driver Satisfaction

AB test results of a platform in 2024:

5.2 Trajectory Big Data: From “Postmortem Recording” to “Prediction Engine”

5.2.1 Trajectory pretreatment assembly line

Cleaning & Compression Technology Stack

1) Original GPS point input

Data characteristics:

Contains noise (e.g., signal drift), high frequency (e.g., 1 point per second), uncalibrated latitude and longitude coordinates. 2. Velocity mutation detection (anomaly filtering)

Judgment logic:

Calculating the instantaneous velocity of a continuous point is considered an anomaly if it exceeds the physical threshold (e.g., 120km/h > urban roads). Branch Processing:

The anomaly → enters the Kalman filter correction

(e.g., “teleportation” point caused by GPS drift under the viaduct) Normal point → enter trajectory compression

3) Kalman filter correction

Function:

Based on motion models (such as the uniform velocity hypothesis) and observations (raw GPS), Bayesian estimation is used to estimate the optimal position. Effect:

Eliminate jitter and smooth trajectories (especially for “jagged” trajectories in low-speed scenes).

4) Douglas-Peucker compression

Purpose of the algorithm:

Delete redundant points (e.g., keep the beginning and end points of a straight section) while maintaining the shape of the track.

Advantage:

Reduce data volume by 90%+ (e.g., from 1000 points to 50 key points) and reduce storage/compute overhead.

5) Map Matching

Core Mission:

Matching GPS point sequences to actual road networks (e.g. AutoNavi/OSM road data).

Technical method:

Hidden Markov model (HMM) or probabilistic graph model to solve the problem of parallel road ambiguity.

Output:

Structured trajectories (e.g., “North Fifth Ring Road, west-to-east”).

6) Storage/analysis

End Applications:

• Driver behavior analysis (sharp acceleration/sharp turns)
• Road condition prediction (calculation of average speed from historical trajectories)
• Billing calibration (to ensure that the trajectory distance is consistent with the actual distance traveled)

5.2.2 Four major application scenarios of trajectory mining

1) Demand forecasting: spatio-temporal cube model

• Spatio-temporal meshing
• Divide the city into a geographical grid of 500m ×500m, while cutting it according to 15-minute time slices to form a three-dimensional space-time lattice (space + time).
• Each grid contains: location (geographic coordinate range) and time (time window).
• Multi-factor weighted forecasting
• The predicted value is a weighted sum of three factors: Historical order volume (60% weight)
• Weather impact (20% weight)
• Local events (20% weight)
• Final predicted value

Hangzhou case: the prediction accuracy rate is 88%, and the response rate is increased by 17% by dispatching vehicles in advance

2) Road network health diagnosis

• Bottleneck identification: > 100 sudden brakes occur every day on the same road section
• Missing connections: the track shows a large number of U-turn points (new intersections need to be added)

3) Portrait of the driver’s behavior

5.3 System collaboration: the flywheel effect of three-terminal linkage

5.3.1 Data closed-loop design

5.3.2 Pareto Optimal Cost and Experience

Multi-objective optimization framework:

2023 Participation Experience:

• Morning Peak: $\alpha:\beta = 3:7$ (Priority Passenger Experience)
• Peak Period: $\alpha:\beta = 6:4$ (balanced driver income)

The essence of the global optimal scheduling system is the redistribution engine of spatio-temporal resources, and its evolutionary direction has shown three major trends:

1. Real-time: 5G+ edge computing reduces scheduling latency from seconds to milliseconds (e.g., Tesla Robotaxi test)
2. Multi-modal: integrated scheduling of online car-hailing, public transportation, and shared bicycles (AutoNavi “Future Traffic Brain” pilot)
3. Socialization: Open Trajectory Data Helps Urban Governance (Hangzhou Asian Games Traffic Control Collaborative Case)

Chapter 6 Construction of Taiwanization in Maps: Architectural Revolution of Three-End Collaboration and Cost Optimization

6.1 Middle-level architecture design: from “chimney-style” to “capability reuse”

6.1.1 Pain points of traditional architecture

Typical problem scenarios:

• The driver, passenger, and server side each call the map API, and the billing is repeated and the data is inconsistent
• Heat map data is calculated independently on three terminals, and server resources are wasted by 40%
• The launch of new functions requires synchronous transformation of the three ends, and the iteration cycle > 2 weeks

6.1.2 Abstraction of the core capabilities of the middle office

Key module design:

1) Data access layer

• Multi-source data fusion: GPS tracks, third-party traffic conditions (AutoNavi/Here), IoT device data
• Data protocol standardization
• For efficient communication between the vehicle and the server.
• Compared with text protocols such as JSON, protobuf has higher encoding efficiency (bandwidth saving) and parsing speed.

2) Compute the engine layer

Batch flow integration:

3) Service abstraction layer

• Common interfaces: /route?origin=lat, lng&destination=lat, lng&mode=driving
• Business customization: Exclusive parameters for ride-hailing &car_type=electric&priority=driver_income

6.2 Three major technological breakthroughs in three-terminal collaboration

6.2.1 Data consistency guarantee: distributed transaction solution

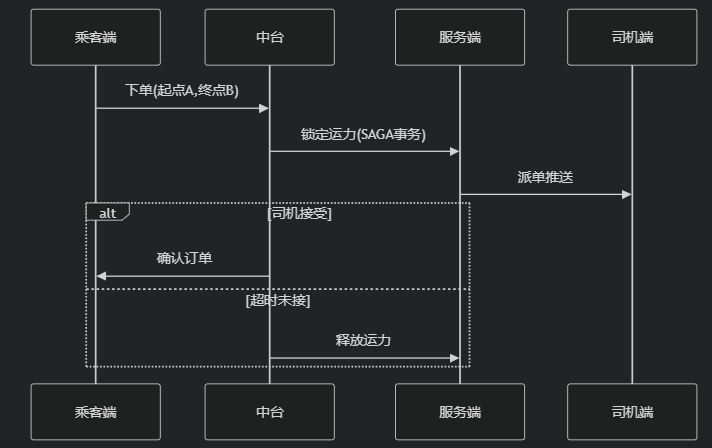

Cross-end synchronization between passenger order placement and driver ordering:

Compensation mechanism design:

• Eventual consistency: Fix abnormal status orders with scheduled tasks (e.g., 15 minutes of unconfirmed orders)
• Case: Abnormal order rate reduced from 7% to 0.05%

6.2.2 Dynamic bandwidth optimization: differentiated data push

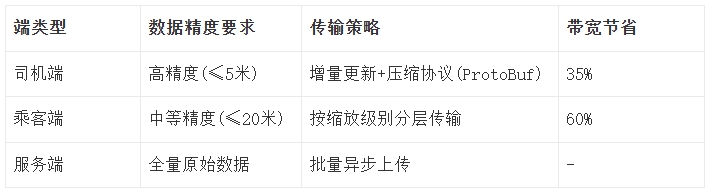

Strategy Comparison Table:

Tencent Map SDK Actual Measurement:

• The average daily traffic on the driver side has been reduced from 15MB to 9.8MB
• The loading delay of the passenger map has been reduced from 2s to 0.7s

6.2.3 Intelligent caching strategy: local utilization of spatio-temporal use

Multi-level cache architecture:

1. Device cache: Last 3 navigation routes (LRU algorithm)
2. Edge nodes: city-level road network cache (CDN dynamic warm-up)
3. Central cluster: global hotspot data (e.g., airports, train stations)

Cache Hit Rate Optimization:

High-frequency route detection

• Condition: Currently in peak hours + repeat usage of the route during the same period of time on weekdays > 30%
• Scenario: For example, commuting routes on weekdays (such as “Huilongguan → Zhongguancun” appear frequently at 8 a.m.)

Special area detection

• Condition: The route ends at a special POI (e.g. airport, hospital)
• Scenario: Routes in these areas are usually highly reusable (e.g. “Capital Airport T3→ International Trade”)

Technical value

• Improved performance: Reduce duplicate calculations (e.g., ETA calculations, path planning) by caching high-frequency/high-value routes.
• Reduce load: Reduce the query pressure on the database/API by 30%~50% (experience value) during peak periods.
• Business perception: Combine time laws (peak_hour) and spatial features (special POIs) to make intelligent decisions.

6.3 Cost Optimization in Practice: From “Resource Consumption” to “Profit Center”

6.3.1 Map API cost dismantling and cost reduction

Typical cost structure (taking a monthly order of 10 million as an example):

Cost reduction measures:

1) Hybrid call strategy:

• Core business districts use AutoNavi API (data freshness priority)
• Open source OSRM engine for suburban use (cost priority)

2) Flow shaping:

• Non-real-time request queuing (e.g., historical trajectory analysis)

6.3.2 Flexible scheduling of computing power: cloud-native practice

Dynamic scaling strategy:

• Peak hours for ride-hailing: The CPU of the routing computing service soars due to sudden orders, and the capacity is automatically expanded to 50 pods
• Night Peak Period: Automatically scale down to 10 pods to save resources

6.4 Future evolution: the next stop of middle-Taiwanization

6.4.1 Technology Trends

1. Serverless: Alibaba Cloud function computing achieves zero idle resources
2. Geographic blockchain: on-chain storage of driver trajectory data (such as T-Mobile’s Web3 experiment)
3. Edge AI: Lightweight path planning model for direct operation at the vehicle end (Tesla FSD solution)

6.4.2 Commercial extension

• Data asset monetization: Anonymous trajectory data is sold to urban planning departments
• Capability open platform: Output scheduling capabilities to logistics companies

The essence of map Taiwanization is to transform location intelligence into an enterprise-level operating system, and its success is marked by three signs:

1. Collaboration efficiency: The data latency at three ends < 500ms
2. Cost benefit: The cost of a map per unit order drops to less than 1 yuan
3. Speed of innovation: The launch cycle of new features has been shortened from weekly to daily

Chapter 7 Technical Selection and Practical Traps: The “Reef” and “Lighthouse” of Online Ride-hailing Maps

7.1 Map API Selection: A triangular game of function, cost, and risk

7.1.1 Comparison of capabilities of mainstream map service providers

Core functional difference matrix

Selection decision tree:

7.1.2 Hidden cost traps

1) QPS Burst Cost:

Case: During a promotion period on a platform, the number of calls increased by 5 times, resulting in an API overage fee of ¥230,000

Response: Configure a fusing mechanism (e.g., limit the current to 5000 times per second)

2) Additional function charges:

• Reverse geocoding (AutoNavi 002 yuan/time)
• Satellite image (Baidu 1 yuan/time)

7.2 Self-built vs. third-party: A multiple-choice question with no perfect answer

7.2.1 Feasibility analysis of self-built map engine

Technology stack requirements

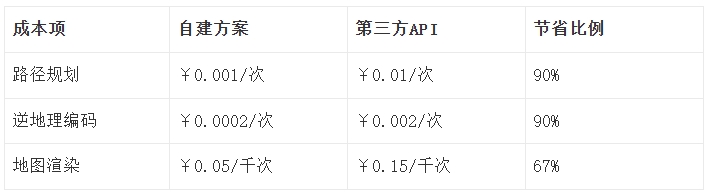

Cost calculation (taking daily orders of 1 million as an example):

Applicable scenarios:

• There are long-term technical reserves (such as the self-developed Polaris system of a platform in 2015)
• Special needs that cannot be met (e.g., military-grade encrypted tracks)

7.2.2 Hybrid architecture practices

A platform solution:

• Self-built engine in core cities (60% cost savings)
• Edge area fallback to AutoNavi API

7.3 Six “death traps” that developers must know

Pitfall 1: Coordinate system confusion

Disaster site: An app directly uses GPS raw coordinates (WGS-84), causing the Amap display to be offset by 500 meters

Solution:

Conversion algorithms using geographic coordinate systems eliminate map bias.

Pitfall 2: Path planning timeout

Typical faults: The morning and evening peak interface response suddenly increases from 200ms to 8s, causing a timeout crash on the driver’s side

Optimization Scheme:

Set the rating timeout

Fail fast

1. Set the connection timeout to 500 milliseconds to avoid prolonged requests being suspended due to unavailability of the backend service (for example, quickly switching standby nodes when the backend service crashes).
2. Read timeout is set to 2 seconds to ensure that operations such as route calculations are returned within a reasonable time (suitable for lightweight APIs, not for large file transfers).

Applicable scenarios

1. High concurrency routing services (e.g., ride-hailing route planning)
2. Microservice calls that require quick response (e.g., real-time ETA calculations)

Local cache popular routes (TTL 5 minutes)

Pitfall 3: Distorted heatmap data

Error case: Directly using unnormalized order numbers, resulting in fake hotspots in remote areas

Correct practice: Eliminate area deviation: Avoid large grids being misjudged as hot spots due to absolute order volume (e.g., 10 orders/1km² is higher than 20 orders/5km² actual density)

Spatial analysis: Accurate area calculations in combination with geographic functions (e.g., ST_Area) (considering the curvature of the Earth)

Visualization-Friendly: Standardized heat_value can generate heat maps directly

Application scenarios

Capacity scheduling

Find out the top 5 grids with the highest demand density

Branch planning

Add charging stations/service stations in areas with heat_value > thresholds

Dynamic pricing

Real-time monitoring of the difference in demand density of each grid triggers the price adjustment strategy

Trap 4: Electronic fence misses judgment

Legal risk: A platform failed to identify the airport no-parking area and was fined ¥500,000

Precision fencing scheme:

The Ray-Casting Algorithm is used to determine whether a point is inside a polygon.

Trap 5: Forgery of driver trajectories

Cheating method: Simulate GPS signals to create false itineraries (a gang defrauded subsidies of ¥2 million)

Defense Strategy:

• Inertial navigation verification: When GPS signal is lost, the vehicle speed should ≤ 120% of the last recorded
• Road matching detection: More than 95% of the trajectory points need to fall on the road network

7.4 Selection checklist: Five must-ask soul questions

1. Coverage capacity: Does it support the hierarchical navigation of viaducts in the target city?
2. SLA guarantee: Does the promised 99.95% availability include holidays?
3. Scalability: Can you smoothly upgrade from the free version as your business grows?
4. Compliance: Is the map review number within the validity period?
5. Disaster Recovery Scenario: Is there a Downgrade Policy in the event of an API service outage?

Technical selection is like “finding the optimal path in a minefield”, which needs to be balanced:

1. Short-term cost vs. long-term controllability
2. Complete functions and simple architecture
3. Advanced technology and team ability

Chapter 8 Conclusion: Constructing a Three-Order Model of Map Capability: A Strategic Transition from Tools to Ecology

Basic layer: precise positioning and navigation – the “bottom line of survival” on the driver’s side

In the ride-hailing industry, a 1-meter positioning error can mean a 30-second delay in pick-up. The basic layer capability directly determines the lower limit of the platform’s basic experience:

• Technology core: Beidou-3/GPS dual-frequency positioning, multi-sensor fusion algorithm, offline navigation capabilities
• Business value: Reduce the driver’s overtime rate from >15% to <5% (such as T3 travel through high-precision positioning)
• The cost of failure: an average daily cancellation order increase of 12% due to tunnel positioning drift on a second-tier platform

“Without accurate map navigation, no matter how good the scheduling algorithm is, it is a castle in the air.” ——Former technical director of a platform map division

Advanced level: Data-driven intelligent scheduling – the “efficiency engine” of the server side

When the basic positioning is up to standard, the focus of competition turns to how to use map data to reconstruct the relationship between supply and demand:

Core Competencies:

• Real-time heat maps and capacity predictions (LSTM+spatiotemporal cube model)
• Dynamic Pricing and ETA Joint Optimization (Reinforcement Learning Reward Function Design)

Head case:

• A platform taxi increased the average daily income of drivers by 23% through scheduling algorithms
• A platform uses trajectory big data to reduce empty driving mileage by 18%

Key turning point: After the platform’s daily orders exceeded 100,000 orders, the cost of the self-built scheduling engine was 62% lower than that of the third-party solution.

Breakthrough Layer: Experience Reconstruction – Defining the Future “Interaction Revolution”

When the basic functions converge, innovative experiences such as AR navigation, voice interaction, and carbon footprint visualization become premium points:

Technological frontiers:

• Baidu AR navigation realizes “virtual arrows fit the real road”
• Tesla’s car voice supports complex commands such as “avoid all toll booths”

User Data:

• Passengers who use the AR car search function have a satisfaction score 27% higher than the traditional model
• Carbon footprint display increases the conversion rate of carpooling orders by 15% (measured by Dida Chuxing)

What stage is your platform in?

Are you facing the following problems?

• The driver’s overtime rate > 15%, and the monthly loss of order income exceeds ¥500,000
• 30% of passenger complaints are related to positioning, and brand reputation continues to decline
• The scheduling algorithm has not been upgraded for three years, and the driver turnover rate has increased by 40% year-on-year

Act now: Book an expert diagnosis for a customized upgrade

Choice is greater than effort – in the era of smart travel, map capabilities are the lifeline of the platform.
